Fleet # –
VIN – 1E9N22201PE111002
Year – 1993
Make – Etnyre
Model – Gooseneck Low Boy
Body Style – Heavy Equipment Trailer and Tag-Axle
Single Axle/Dual Axle – Tandem Axle/Dual wheel
Tire Description – 255/70R22.5
Tire Condition – Fair
Titled? – Yes
Ownership Information – Title
Does the unit operate? – Yes
Mechanical Condition – Fair
Mechanical Notes – Fleet maintained, with regular maintenance.
Body Condition – Fair

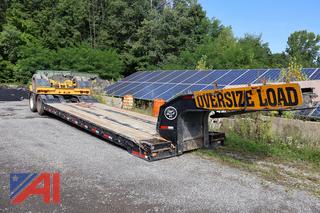

Body Notes – Solid with average wear and rust. 24'6" landing bed, with 8' raised rear deck and 12'6" Hydraulic type gooseneck. The dual wheel tag-axle shown in the photos is also included with one of its tires blown. View images.
The following general information is web-sourced and may contain variances from the subject unit:
The 1993 Etnyre Gooseneck Low Boy Heavy Equipment Trailer (Model 72) has an estimated Gross Vehicle Weight Rating (GVWR) of 85,000 to 90,000 lbs, providing a net payload capacity of 35 tons (70,000 lbs). This type of heavy-haul trailer belongs to the iconic Blackhawk line manufactured by E.D. Etnyre & Co.. It is engineered specifically for transporting heavy construction machinery like excavators, bulldozers, or paving equipment.
Dimensions & Capacity Breakdown
- Low Boy Main Deck: At 24'6" long, it offers a spacious well for grounding oversized equipment to lower the center of gravity and clear overhead bridges.
- Gooseneck: The 12'6" long neck is designed to distribute a substantial amount of the payload weight (approx. 35,000 lbs) directly onto the tractor's fifth wheel plate.
- Raised Landing Area: The 8' long rear deck sits raised above the tandem wheels. It serves as an additional platform for carrying attachments, buckets, or smaller gear.
- Width: At 7'10" wide (nominally 94 inches), this is a classic standard-width heavy haul configuration, commonly supplemented with swing-out outriggers to support wider 102-inch or 108-inch machinery loads.
Core Engineering Features
- Running Gear & Tires: Equipped with a Tandem Axle / Dual Wheel setup using heavy-duty 255/70R22.5 tires. Each tire has a dual-load capacity of roughly 5,510 lbs, meaning the axles safely support a combined ground weight of around 44,000 lbs, with the remainder of the gross weight resting on the truck tractor.
- Gooseneck Mechanism: Hydraulic Removable Gooseneck (RGN) powered by a tractor wet kit or an external gas pony motor. Allows the neck to disconnect so equipment can drive directly onto the front of the lowbed deck.
- Structural Composition: Built using high-strength T-1 or structural steel framing to withstand intense concentrated payloads, traditionally fitted with durable Apitong or heavy oak wood flooring.
