Fleet # –
Year – 1994
Make – International 4600
Model – Tymco 600
Body Style – Army Street Sweeper
VIN/SN – 1HTSAZPMORH555907
Odometer Numbers – 47980
Hours –
Engine Make/Model – Navistar/International 7.3L IDI (Indirect Injection) Non-turbo, Pony Motor / Auxiliary Engine (John Deere 4239D)
Cyl – 8
Fuel Type – Diesel
Transmission Name – 4-speed hydraulic
Transmission Type – Allison AT-500
Single Axle/Dual Axle – Single Axle Dual Wheel
Tire Size/Type – 9.00R20 with 2 spares
Tire Condition – Good
Plow Size –
Dump Box Size –
Drivetrain – 4×2
GVWR – Estimated 29,500Lbs
Does the unit operate? – Yes
Does the vehicle start? – Yes
Are keys available? – Yes
Ownership Information – Transferable Registration
Mechanical Condition – Fair
Mechanical Notes – Fair to good, well maintained. The JD pony motor has 5164 hours on it.
Body Condition – Fair
Body Notes – Solid with average wear. It has a Tymco #600 Regenerative Air System type sweeper has dual operator stations, dual 43" gutter brooms, Vac/dust control system, 7.3 cubic yard hopper capable of handling a structural payload of over 10,000 lbs.
Interior Condition – Fair
Misc Info –
The following general information is web-sourced and may contain variances from the subject unit:

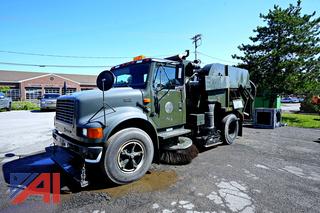

This vehicle is a highly specialized, military-spec 1994 International 4600 Tymco Model 600 Regenerative Air Street Sweeper. Built on a medium-duty International 4600 4×2 chassis, this 29,500 lbs GVWR dual-station vehicle relies on a mechanical 7.3L IDI naturally aspirated V8 diesel main engine, an Allison AT-500 series automatic transmission, and an independent John Deere 4239D pony motor to power its high-capacity sweeping and vacuum system.
Chassis & Drivetrain (International 4600)
The International 4600 was a legendary workhorse platform for vocational and municipal applications during the 1990s.
- Drivetrain Configuration: Single-axle, dual-rear-wheel 4×2 setup designed for tight maneuvering around curbs.
- Tires: Heavy-duty 9.00R20 radial tires mounted on multi-piece or solid steel wheels.
- Dual Operator Stations: Equipped with dual steering wheels and dual pedal setups. This allows the operator to drive safely from either the left or right side of the cab to get a direct line of sight on the gutter brooms and curb line.
- GVWR: Estimated at 29,500 lbs, positioning it firmly as a Class 7 medium-duty vehicle requiring a Commercial Driver's License (CDL) to operate in most jurisdictions.
Main Propulsion Engine (7.3L IDI Diesel)
The truck chassis is powered by the Navistar/International 7.3L IDI (Indirect Injection) V8 engine. This is a legendary, pre-electronics powerplant loved for its bulletproof reliability.
- Aspiration: Naturally Aspirated (Non-Turbo), meaning it relies purely on atmospheric pressure.
- Output: Typically produces around 185 horsepower and 338 to 358 lb-ft of torque.
- Fuel System: Completely mechanical. It uses a dependable Stanadyne DB2 rotary injection pump that requires zero computer controls or wiring harnesses to keep running.
- Key Characteristic: While it won't win any speed races, it will tolerate variable fuel quality and is incredibly simple to maintain compared to modern electronic diesels.
Main Transmission (Allison AT-500 Series)
Mated to the 7.3L engine is an Allison AT-500 series automatic transmission (most commonly the AT-545 variant for this era).
- Type: 4-speed automatic hydraulic transmission designed for medium-duty service.
- Gear Ratios: First gear starts around 3.50:1 for high low-end pulling power, moving up to a direct 1.00:1 ratio in 4th gear.
- Torque Converter: Uses a purely hydraulic, non-lockup converter setup, providing smooth starts and high shock absorption during frequent stop-and-go sweeping patterns.
Pony Motor / Auxiliary Engine (John Deere 4239D)
Because a street sweeper requires consistent vacuum pressure regardless of how fast the truck is moving, it utilizes a "pony motor" configuration. The John Deere 4239D operates independently of the truck's main engine.
- Specs: A 3.9L (239 cubic inch) 4-cylinder, naturally aspirated diesel engine.
- Purpose: It runs at a constant, optimized RPM to directly belt-drive the massive blower turbine and run the gear-driven hydraulic pumps for the broom positioning and hopper dump mechanisms.
- Output: Delivers roughly 75 to 80 horsepower, ensuring constant suction even if the truck drops down to a crawl.
Sweeper System (Tymco Model 600)
The Tymco Model 600 is an industry-standard heavy-duty sweeper. Unlike traditional mechanical sweepers that use a main broom to pick up dirt, Tymco utilizes a patented Regenerative Air System.
- Regenerative Air Blast: The pony motor spins a heavy-duty, rubber-lined aluminum blower wheel. This blower pushes a high-velocity blast of air down into one side of the pick-up head, blasting debris loose from the pavement pavement. Simultaneously, the suction side pulls the debris-laden air up into the hopper.
- No Main Broom: Because it relies on air pressure rather than a central spinning broom, it has fewer wear parts and does not exhaust dusty air back into the atmosphere.
- Gutter Brooms: Equipped with dual 43-inch gutter brooms (one left, one right) to pull debris out of the curb line and directly into the path of the wide suction head.
- Hopper Capacity: Features a massive 7.3 cubic yard hopper capable of handling a structural payload of over 10,000 lbs.
- Dust Control System: Includes a high-efficiency centrifugal dust separator paired with a large onboard water tank (typically 330 to 440 gallons) to knock down fine dust particulates and keep operations clean.
